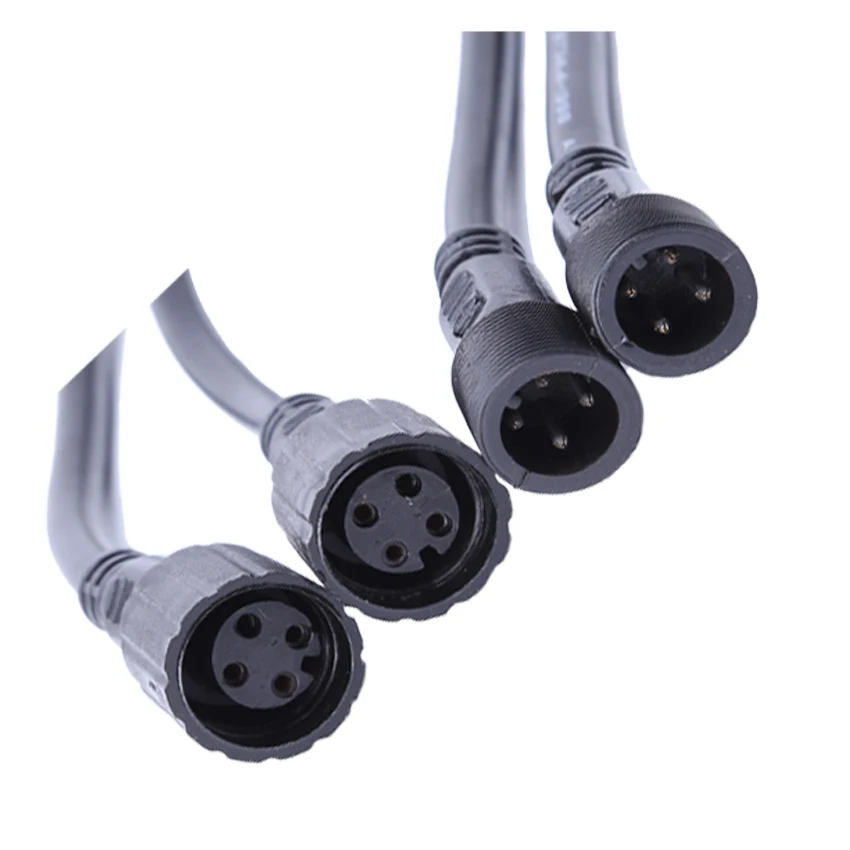

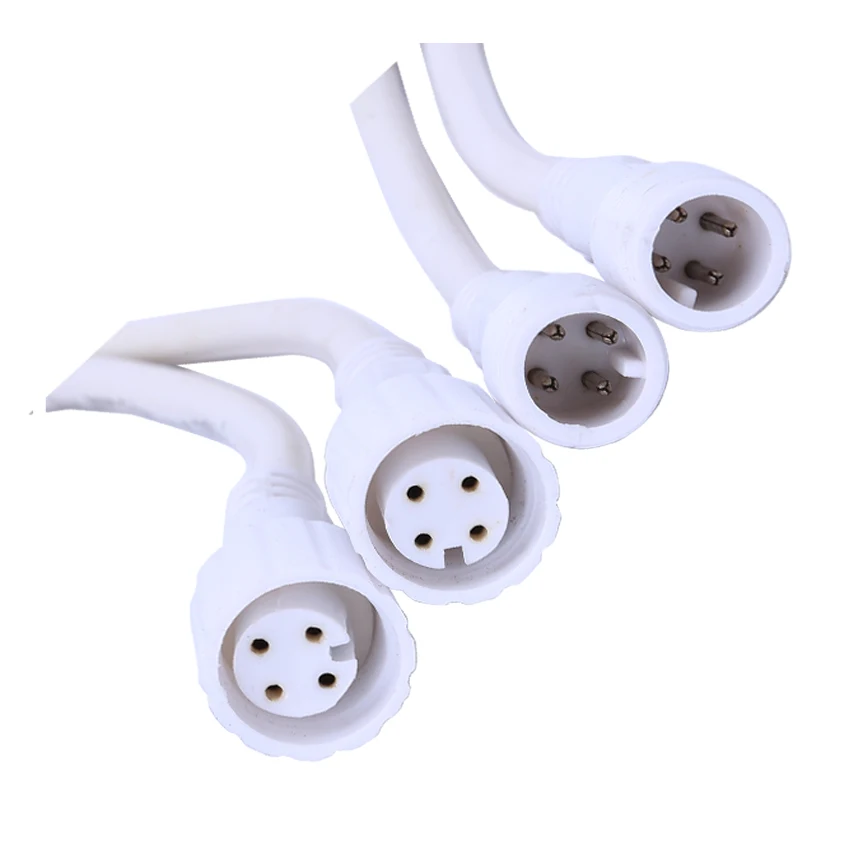

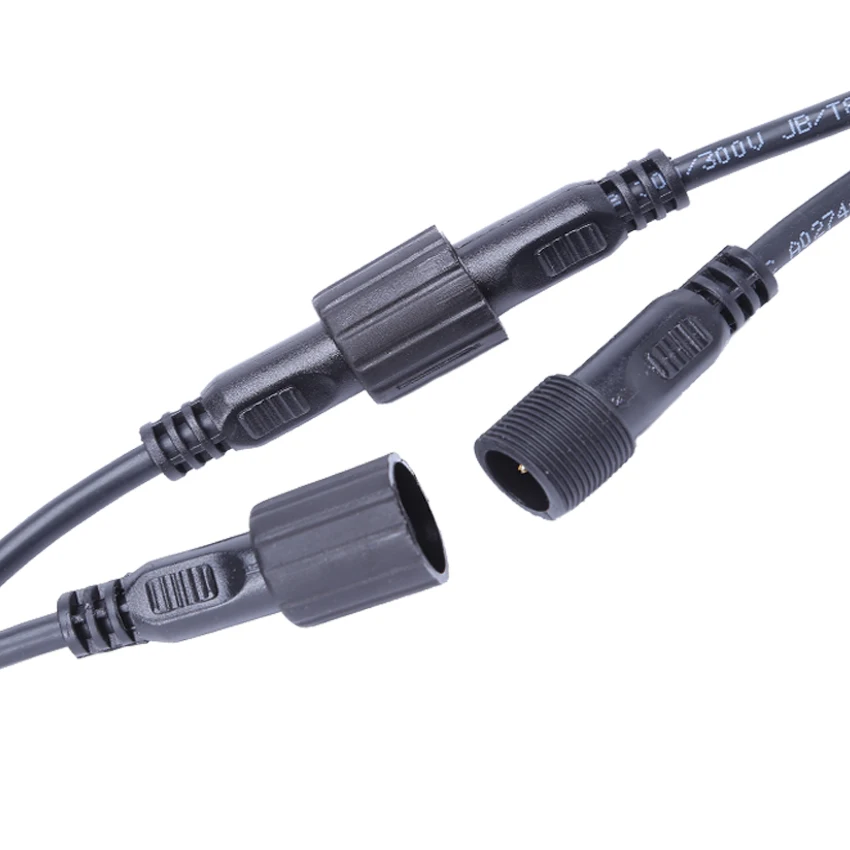

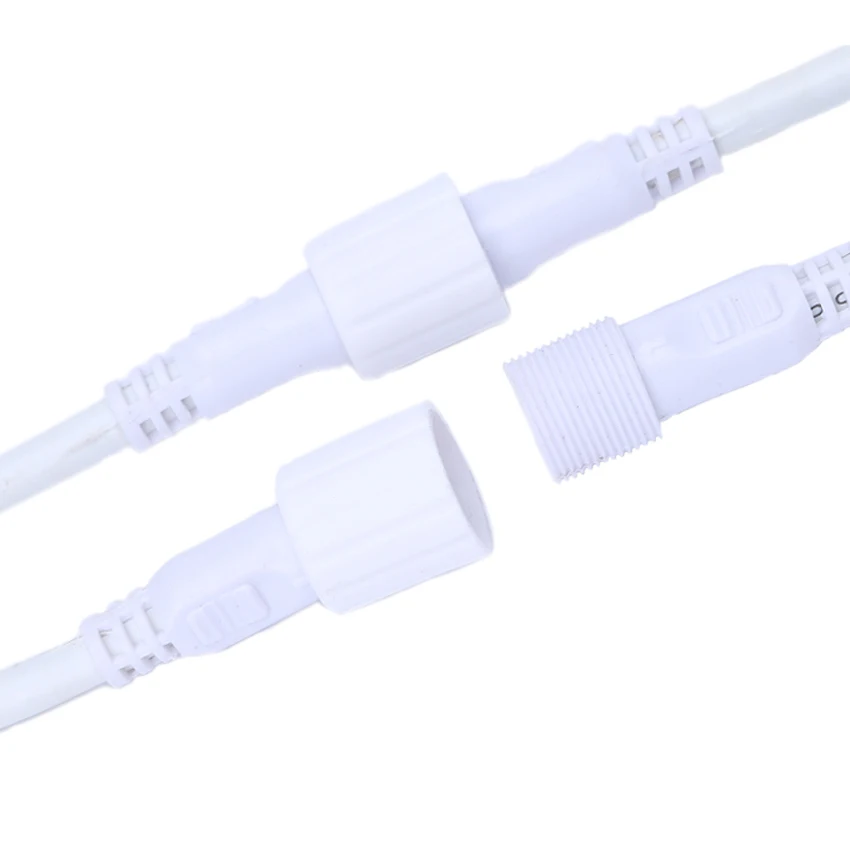

Detailed Pictures

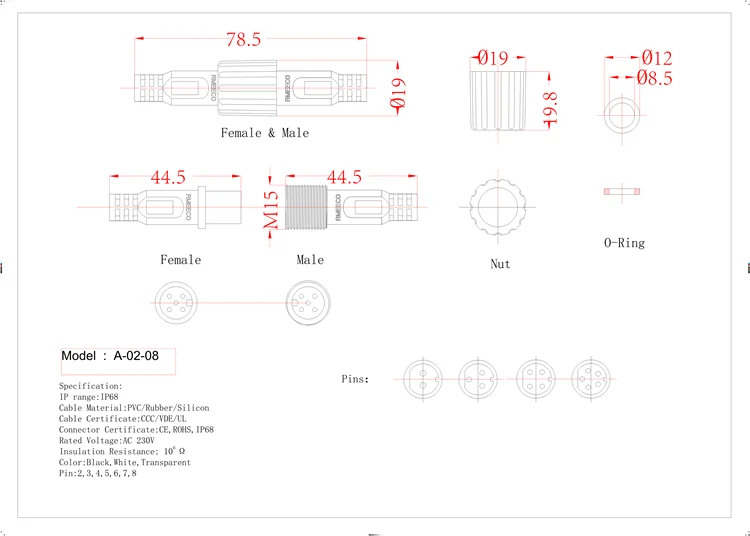

Overall Dimension & Specification
1. IP68 male to female panel connector.
2. Connector material: PVC/ Rubber
3. You can connect male to female. Also can be customized extension cable with 1m or other length wire.
4. Customized solutions and terminal processing can be provided for you.
5. Professional R&D team can help to customize items.
Brand name: | RMEECO |
Item No. | A-02-008 |
Item Color | Black White |
Pin No. | 2-5pin |
Application | LED, Electrical equipment, Smart home etc. |
Gender | male to female waterproof connector |
Cable Length | Customized |
Material | PVC/ Rubber |
Waterproof rating | IP68 |
Current rating | 2.4A 4A 6A 8A 12A |
Voltage | 220V |
Operating temperature | -30 to 105 ℃ |
Related Products
More Products: Waterproof T-type ConnectorsWaterproof Male Female Cable Connector
Certification
All our certificates are real with certificate number and if you want to check them, pls feel free to contact me and I will send the clear and complete copies to you.
Our Office & Workshop & Exhibition
Package & Shipping
WHY CHOOSE US
•We are the manufacturer with our own factory so the lead time is controllable. |
•With R & D Team of over 10 years, we are able to provide customized products. |
• We have gained certificates for our products, such as CCC, UL, VDE, RoHS, etc. |
•Our products are waterproof IP68 so they have a wide application. |
•Product quality is assured because all the incoming materials are tested and all products are 100% tested before delivery by our QC. |
•After-sale service is provided so if any quality issues occur within the warranty period, we will surely deal with them. |
