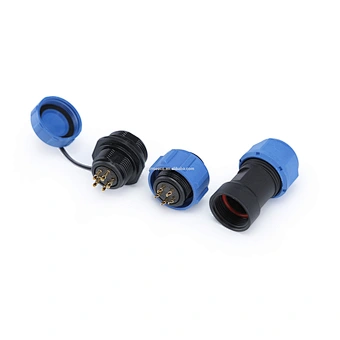

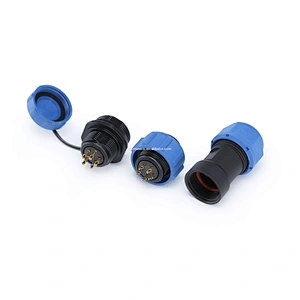

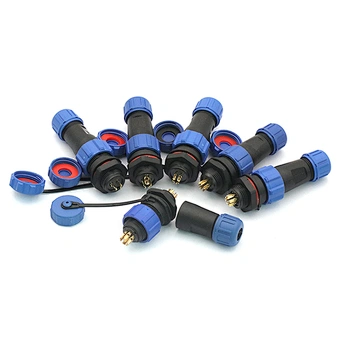

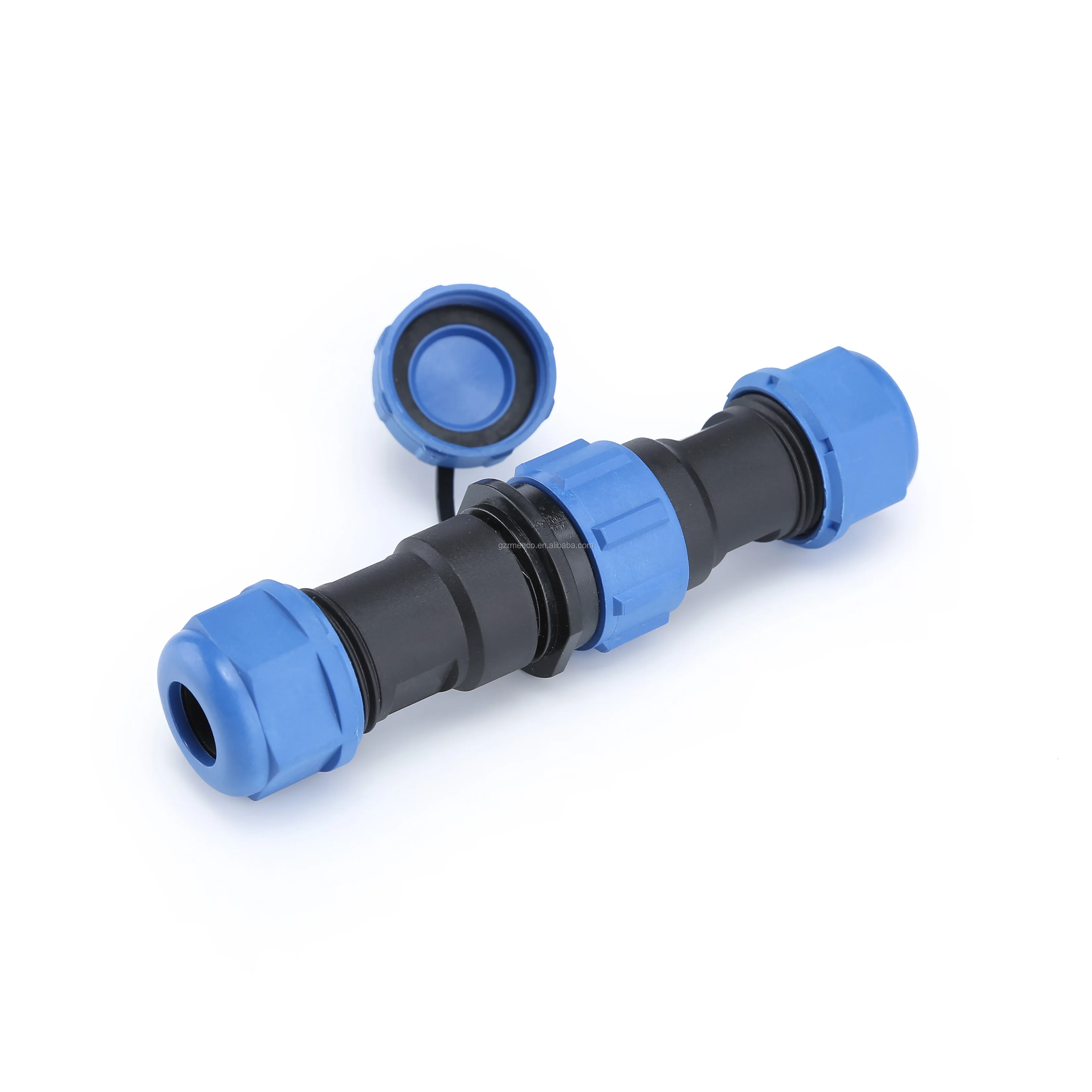

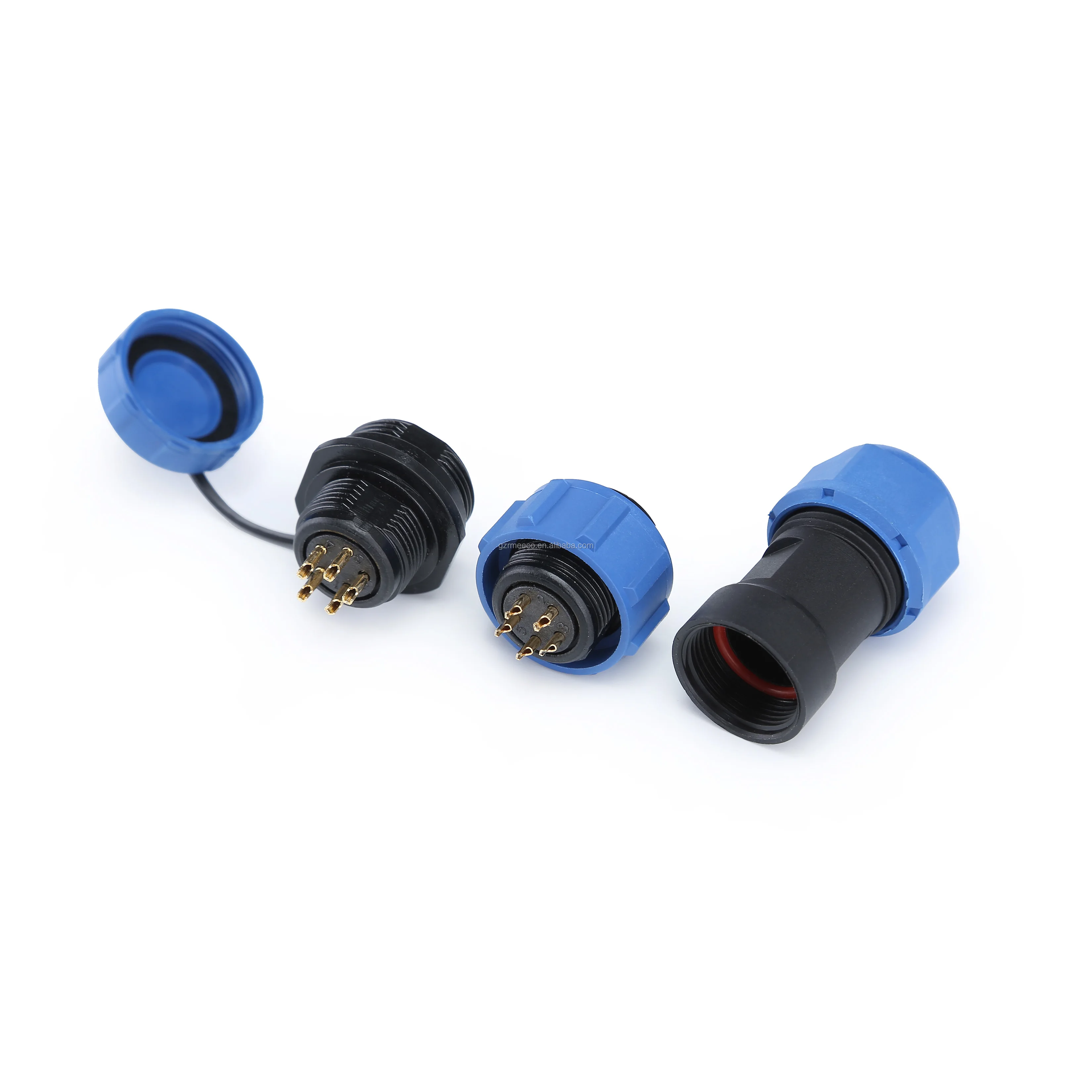

2pin to 9pin Welded male Aviation connector bulkhead waterproof connector

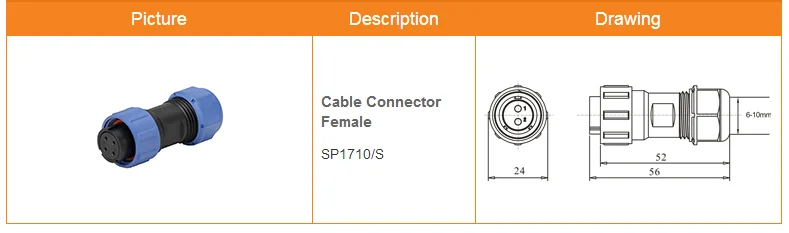

Overall Dimension &Specification
Coupling type | Threaded couplingm male panel mount to female connector |
Item No. | A-02-W17 |
Material | Plastic |
Shell | Nylon66, fire resistance: V-0 |
Insert material | PPS max temperature 260°C,UL94-V0 |
Contact material | Brass with gold plating |
Termination | Solder/Crimp |

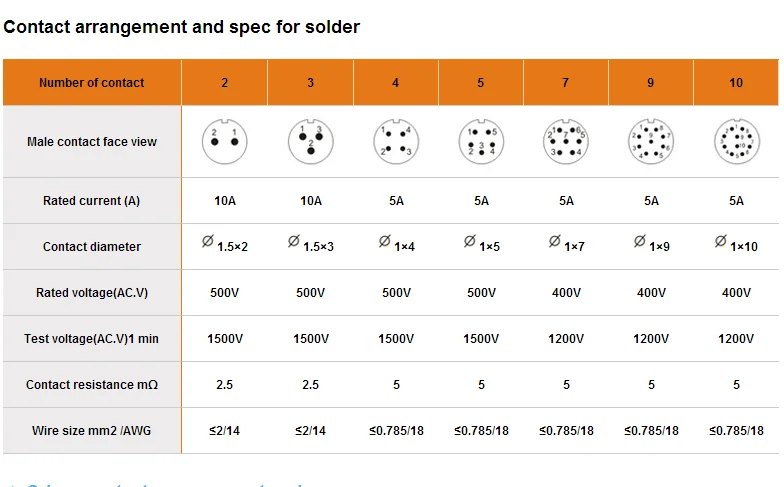

Pin range | 2 pin 3 pin 4 pin 5 pin 7 pin 9 pin |
Cable OD | 6-10mm |
Current rating(A) | 5-10A |
Operating voltage(AC.V.rms) | 500V-400V |
Isulation resistance MΩ | 2000 |
Mating cycle | >500 |
Temperature rating | -25°C~120°C |
IP rating | IP68 |
Related product link:https://www.alibaba.com/product-detail/One-Two-way-cable-docking-waterproof_60768242748.html?spm=a2747.manage.list.10.1b7871d2qa0Rdz
