Specification

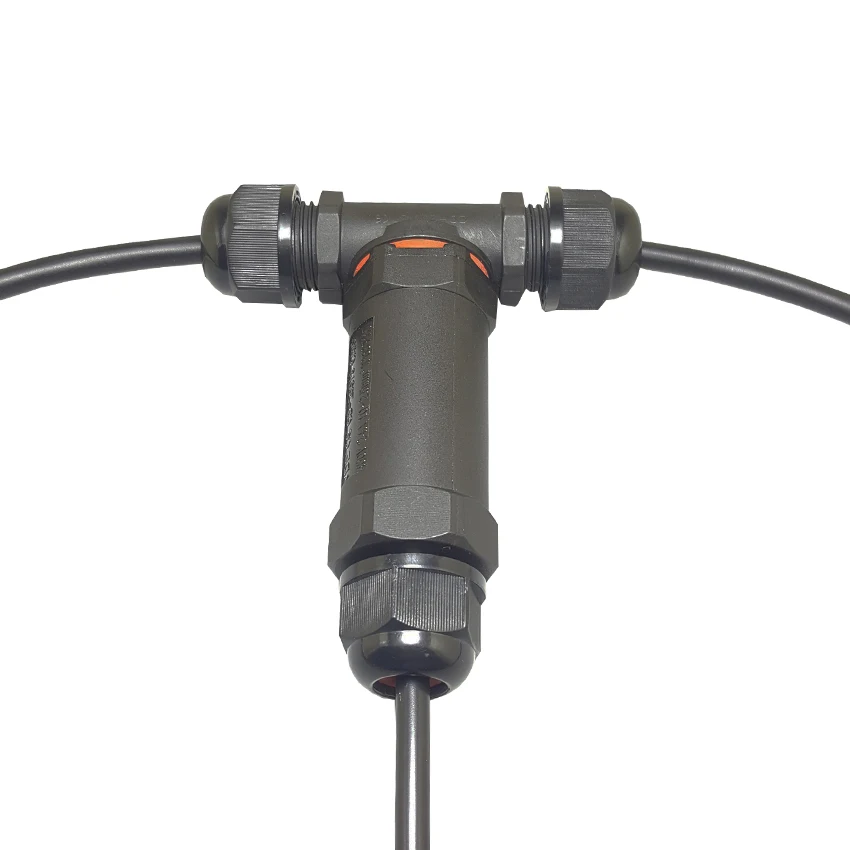

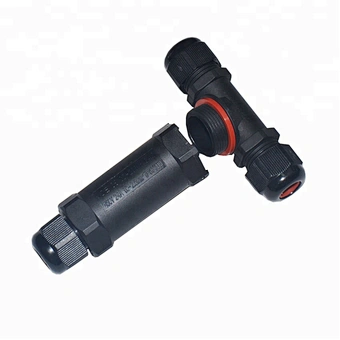

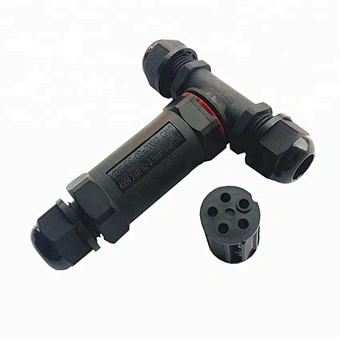

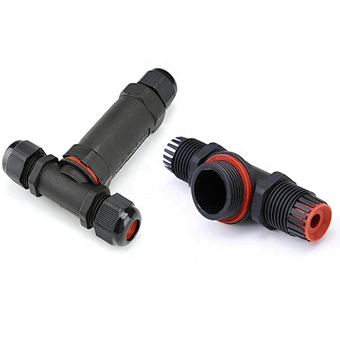

IP67 3pin T type cable splitter waterproof m20 connector
1. T connector waterproof IP67/IP68.
2. Connector material:Nylon.
3. Mating wire material:PVC/Silica gel/Rubber.
4. Pin:2pin 3pin
5. Cable jointed female connector.
6. Favorable waterproof effect,3-way T connector.
7. Type:waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type AC/DC

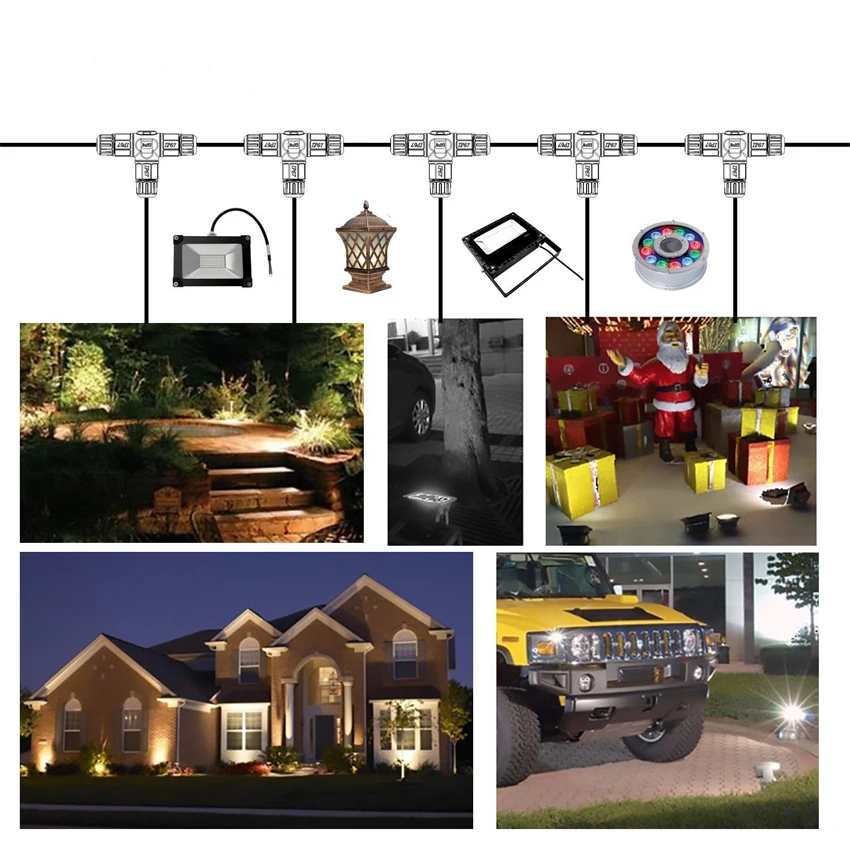

8. Easily install style,widely used the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
9. Any length of the cable is available and terminal processing.
10. Your drawings or samples are warm welcomed since our professional R&D team can help to customize the items you want.
| Production Name | |
| Item NO. | A-02-M20-5 |
| Brand | RMEECO |
| Connectiong Mode | Screw Type |
| Production Level | IP68 |

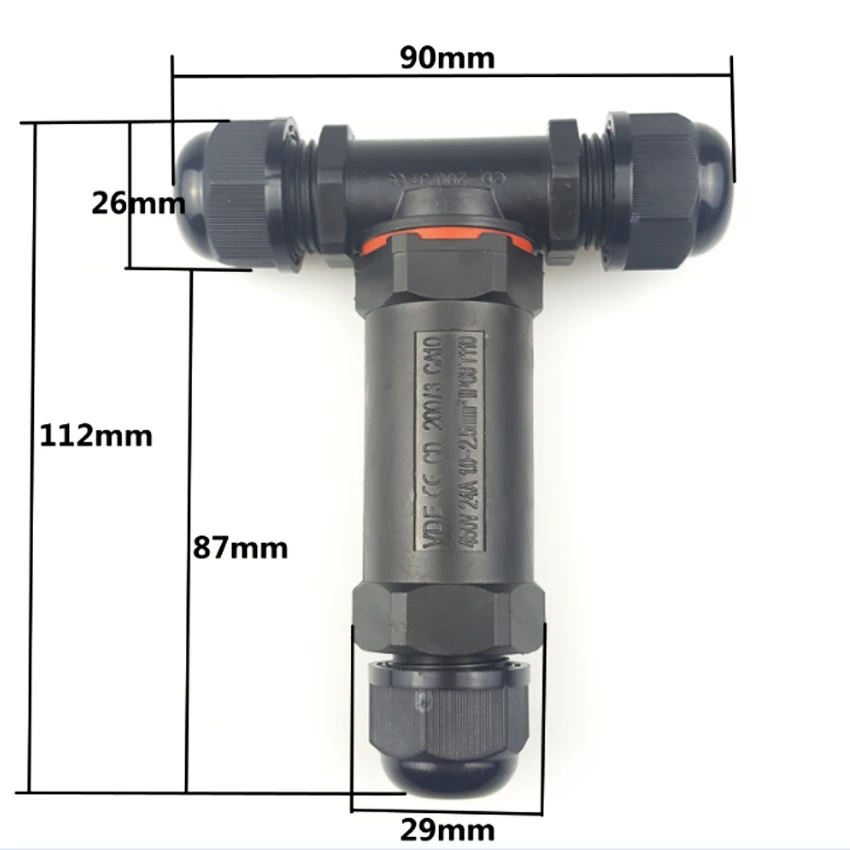

| Size | M20 |
| Wire Diameter | 1.0-2.5mm² |
| Color | Black or White |
| Contact diameter x Qty | 2pin 3pin 4pin 5Pin |
| Voltage rating | 450V |
| Current rating(A) | 24A |
| Contact Resistance | <10Ω |
| Temperature Rating | -40℃----105℃ |
| Prevent the combustion level | UL94-V0 |
| Material | |
| shell&insulated parts | Nylon,PP, Rubber |
| Main Characteristics | |
| Sealed against dust and fluid (IP67/IP68) | |
| Vibration resistance , impact resistance , stretching resistance | |
| Application industries | |
| Auto, Outdoor LED light , Street lamp , Landscape , Power supply | |

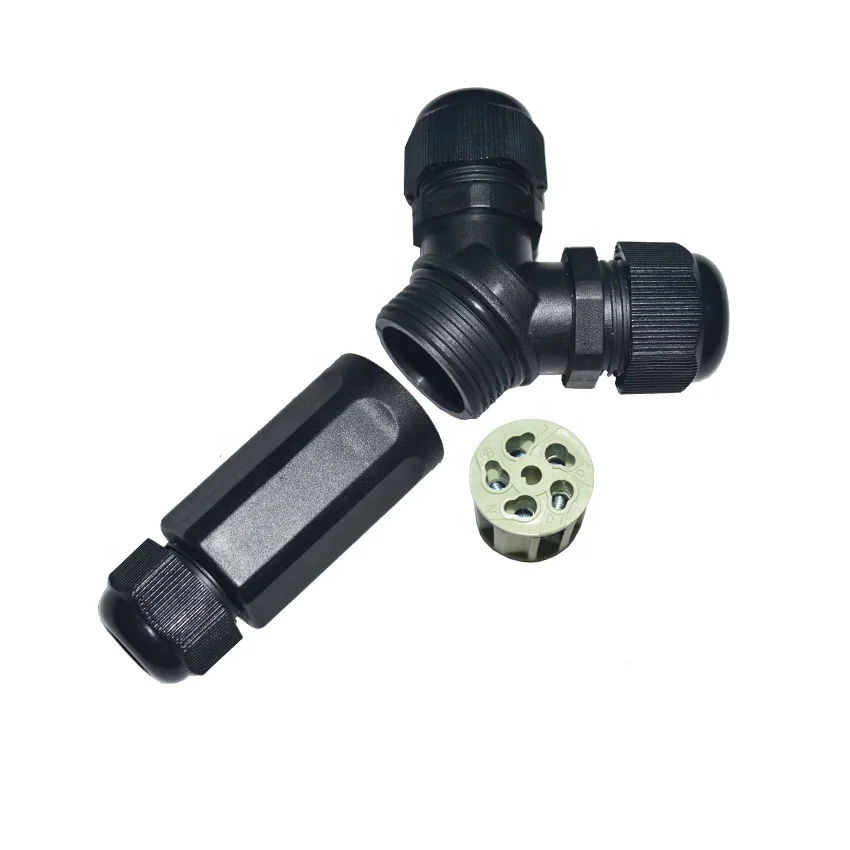

Assembly t Type Connector with Screws 2Pins-5Pins
t tape waterproof connectors three way 5pin T shape Tee connector
