Product Description
Specifications
outdoor application connector

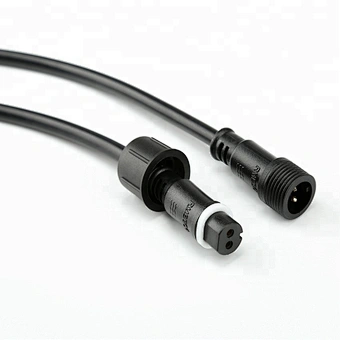

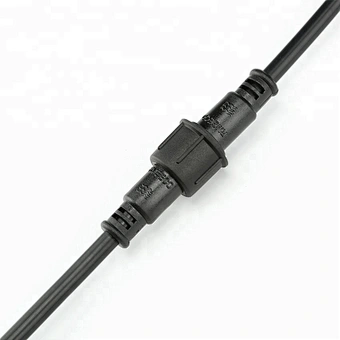

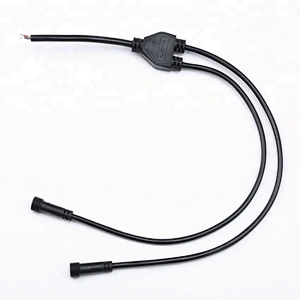

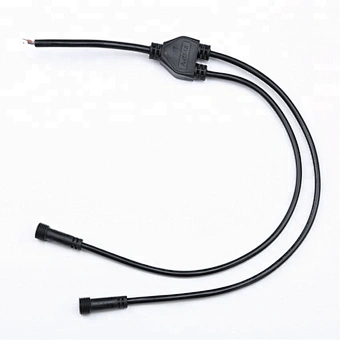

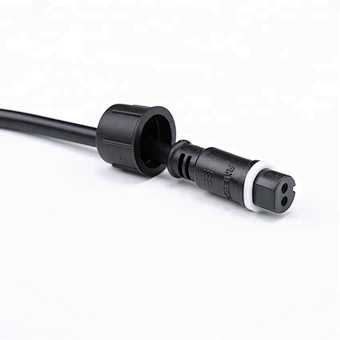

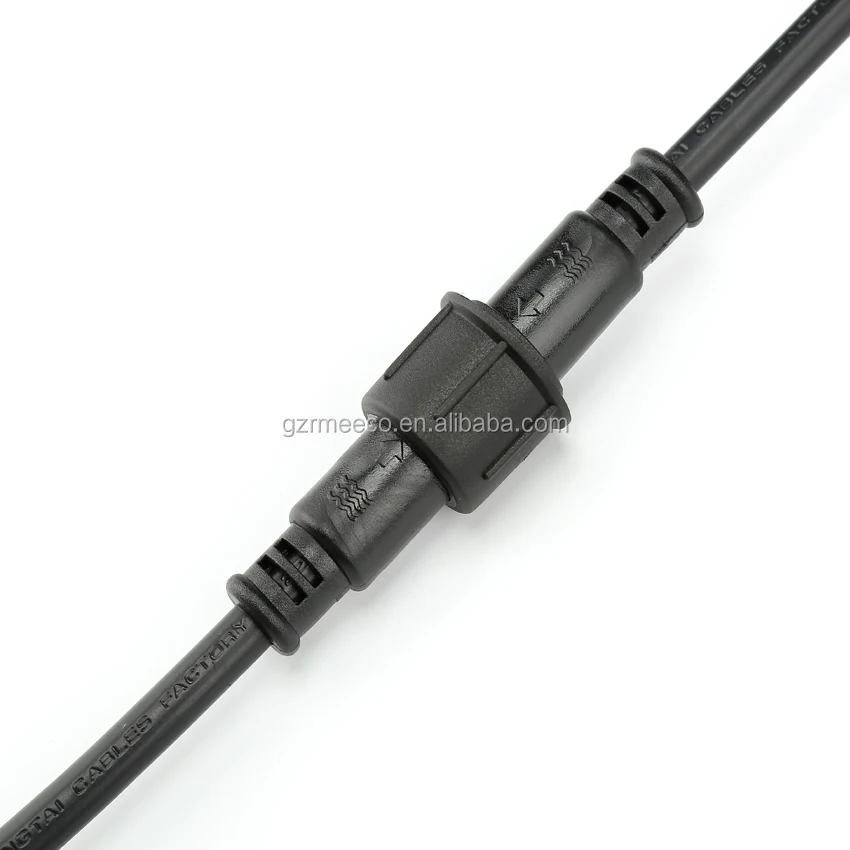

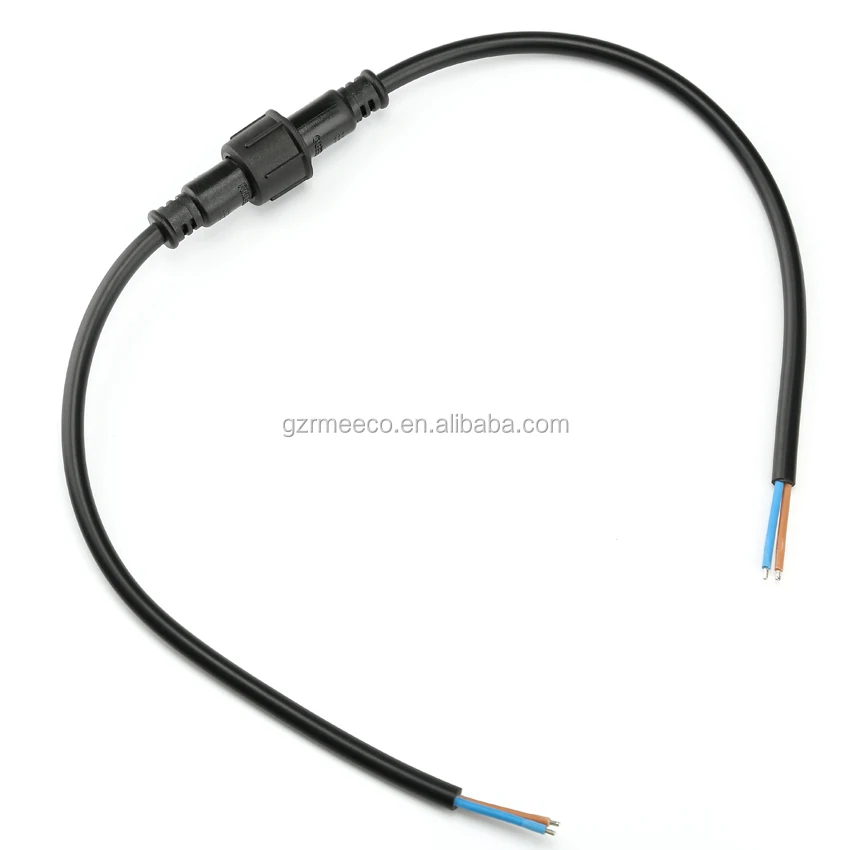

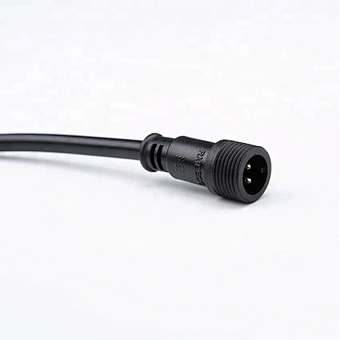

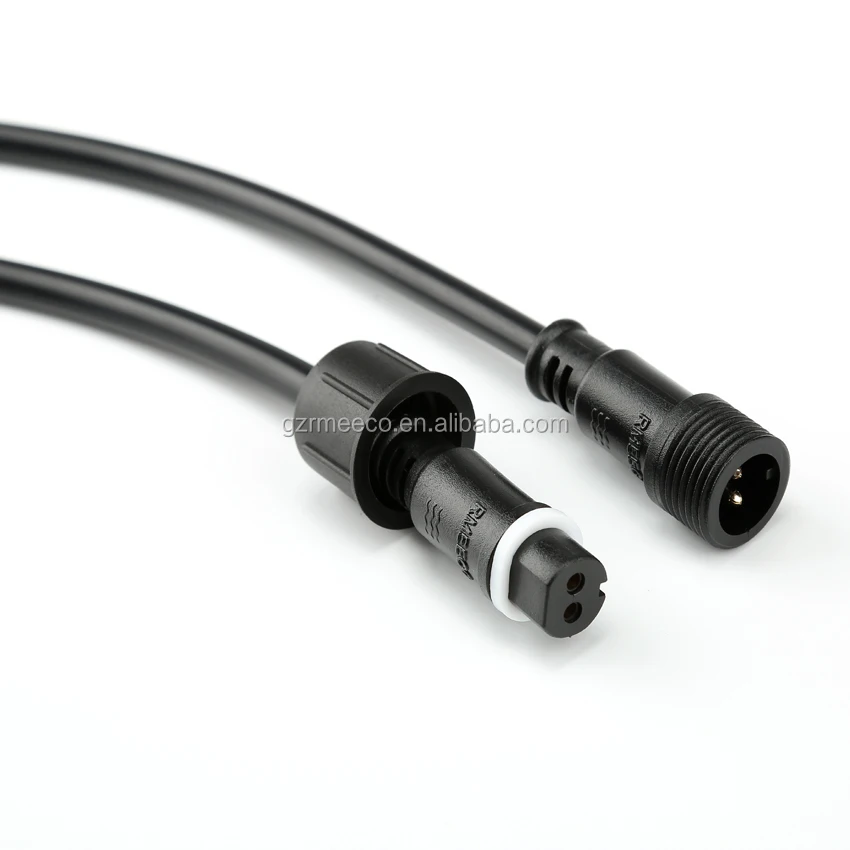

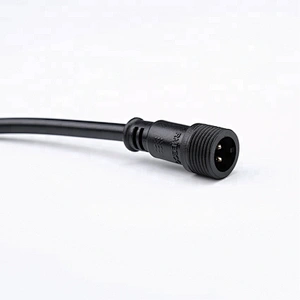

M24 male black 2pin waterproof circular plastic connector
1. Best Design for IP68 Waterproof ;
2. m18 2 pins male to female Connector;
3. Best Quality for 12 months Warranty;
4.Cable max Diameter: 6.7~11.5mm;
5.Customized specifications are accepted.
Remark:
Please specify OD of cable and other requirement when making order.
| A-02-001 | |
| Specifications | |
| Connecting mode | Male to female connector |
| Protection level | IP68 |
| Size | M18 |
| Color | Black and White |
| Contact diameter×Qty | 2pin 3pin 4pin 5pin 6pin |
| Current rating(A) | 2.4A/4A/6A/8A/12A |
| Temperature rating | -40°C~105°C |
| Prevent the combustion level | UL94-V0 |
| Pin & OD | |
| 2pin | 2×0.3 2×0.5 2×0.75 2×1.0 2×1.5 |
| 3pin | 3×0.3 3×0.5 3×0.75 3×1.0 |
| 4pin | 4×0.3 4×0.5 4×0.75 |
| 5pin | 5×0.3 5×0.5 |
| 6pin | 6×0.3 6×0.5 |
| Certificate | |
| CCC VDE UL CE ROHS | |
| Material | |
| Shell&insulated parts | PVC, Rubber |
| Certificate | |
| CCC VDE UL CE ROHS | |
| Main characteristics | |
| Sealed against dust and fluid (IP68) | |
| Vibration resistance,impact resistance,stretching resistance | |
| Application industries | |
| Outdoor LED light, Street lamp, Landscape lamp, Power supply | |
Production show
Company Information
Our certificate
Our Services
Pre-Sales Service
* Inquiry and consulting support.
*Your drawings and samples are warm welcomed since our professional R and D team can help to customize the items you want
* Sample testing support.
* View our Factory.
* Sample order is accepted.
After-Sales Service
* Training how to instal or usethe products.
