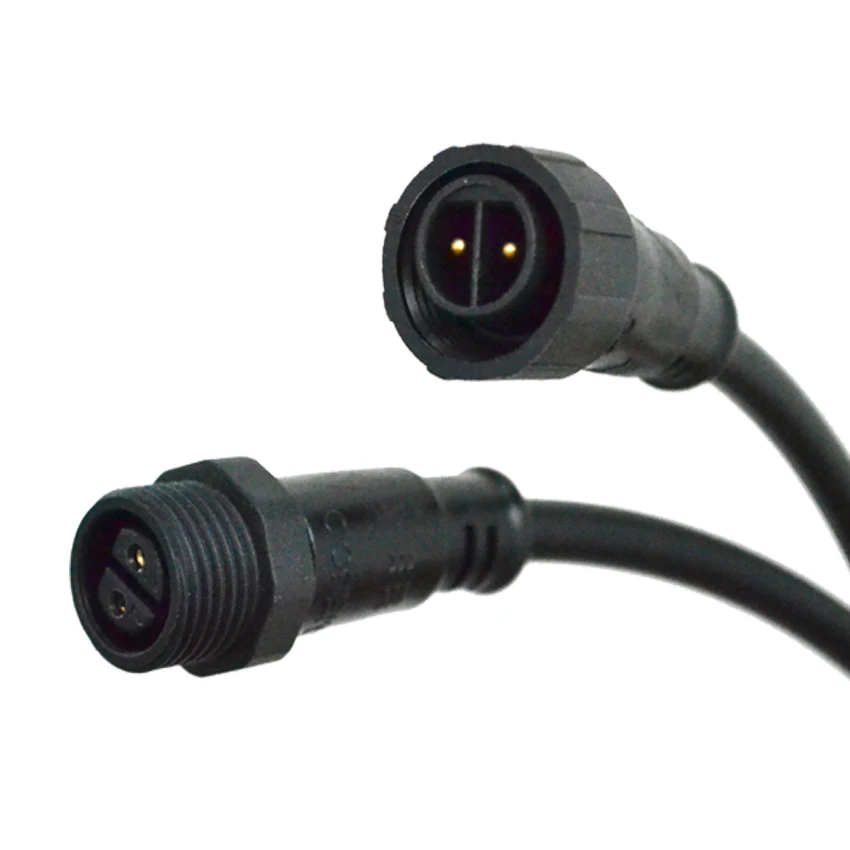

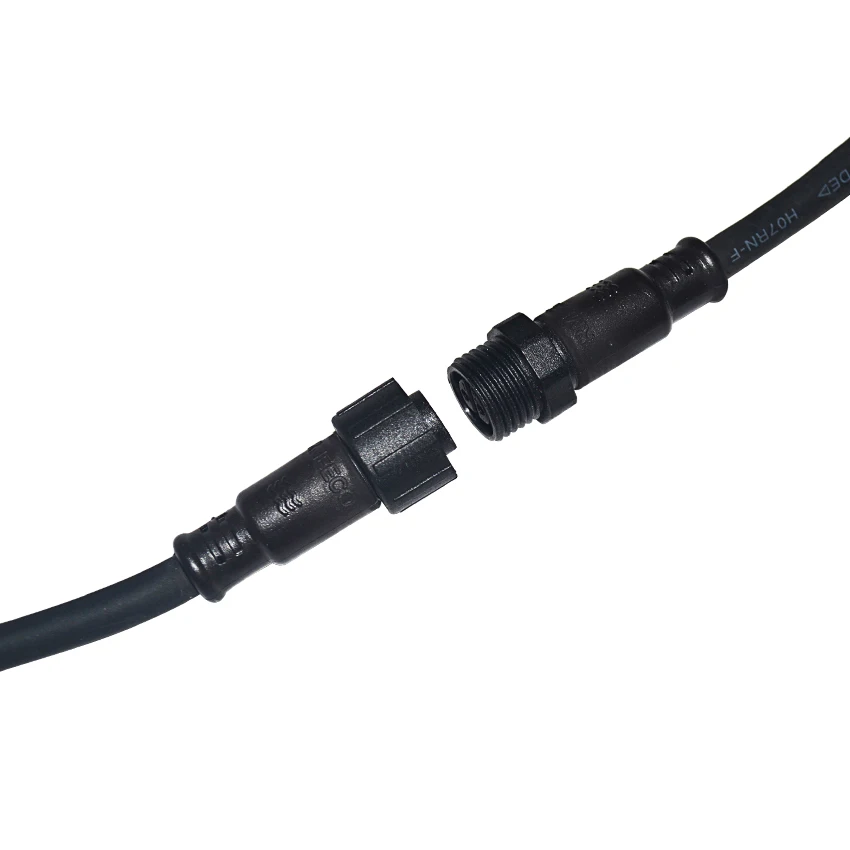

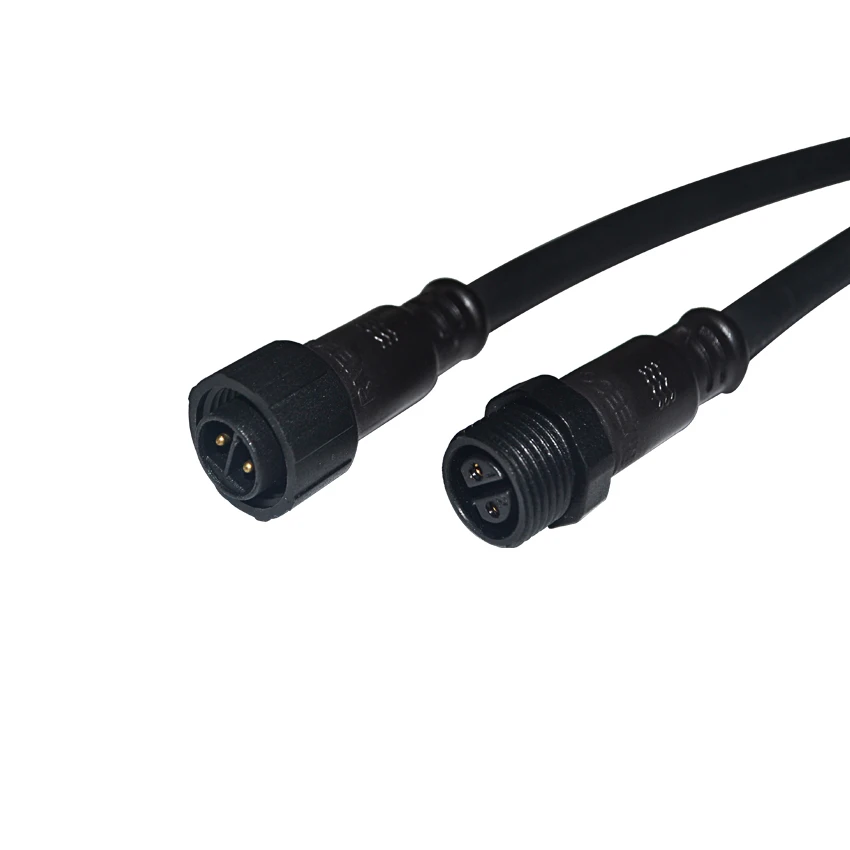

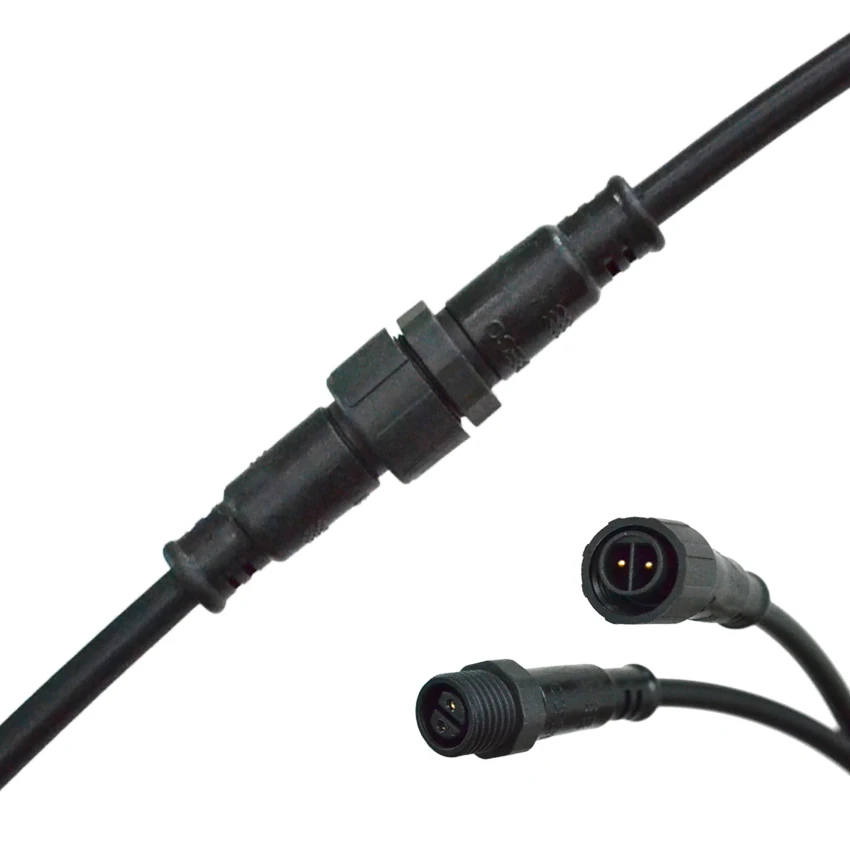

Detailed Pictures

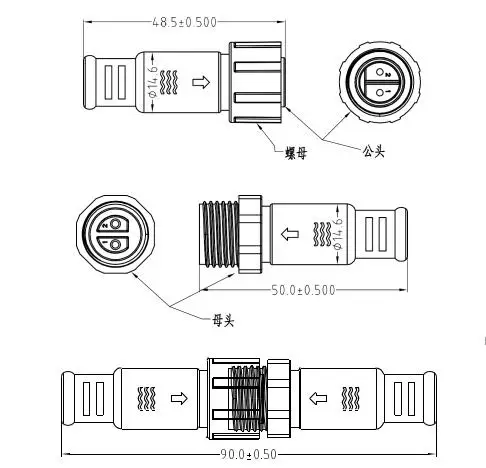

Overall Dimension &Specification
Specifications | |
Connecting mode | Male to female connector |
Protection level | IP68 |
Size | M16 |
Color | Black |
Contact diameter×Qty | 2pin |
Current rating(A) | 2.4A/4A/6A/8A |
Temperature rating | -40°C~105°C |
Prevent the combustion level | UL94-V0 |
Pin & OD(mm²) | |
2pin | 2×0.3 2×0.5 2×0.75 2×1.0 |
Certificate | |
CCC VDE UL CE ROHS | |
Material | |
Shell&insulated parts | PVC, Rubber |
Main characteristics | |
Sealed against dust and fluid (IP68) | |
Vibration resistance,impact resistance,stretching resistance | |
Application industries | |
Outdoor LED light, Landscape lamp, Electrical Equipments. | |
